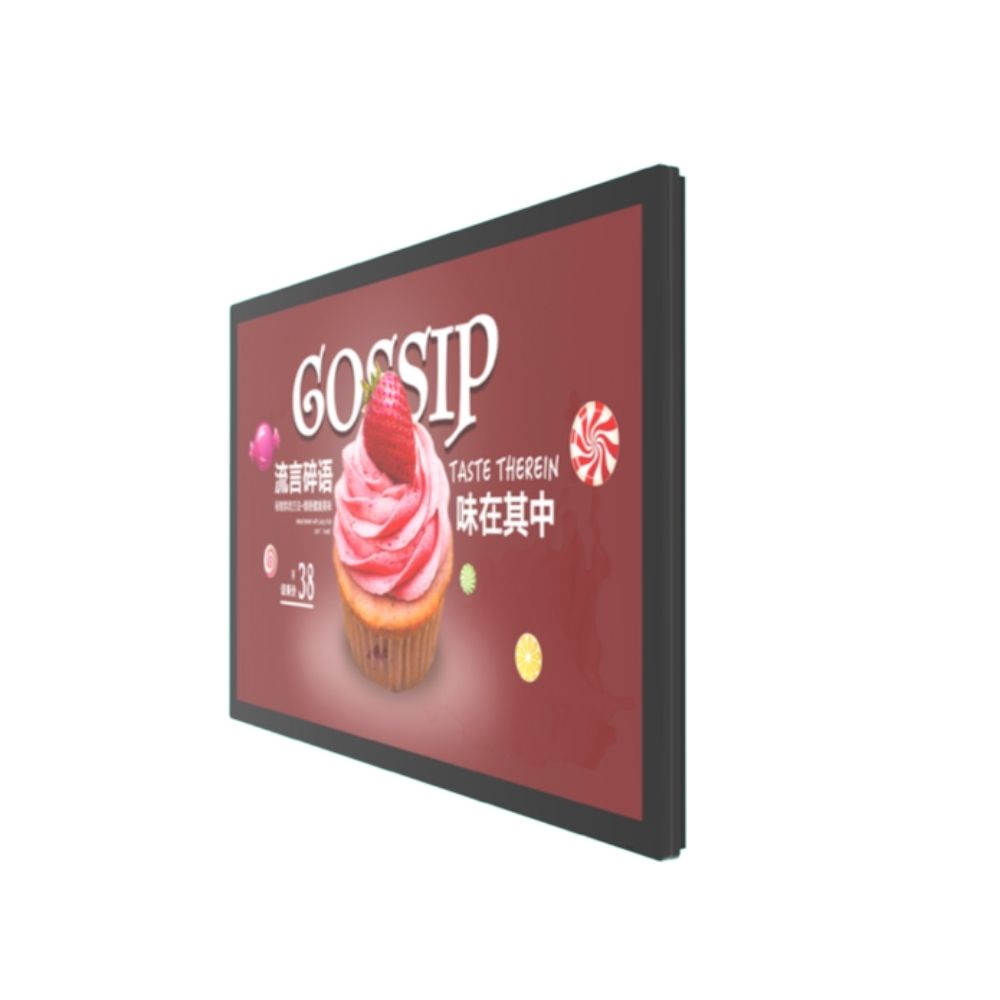

Wall Mounted Display

*Widely used in exhibition, museum, shopping mall, entertainment industry etc. *High brightness is 350cd/㎡,screen is readable under sunlight *Capacitive Touching ,TFT-LCD with led backlight *Build-in fans cooling/air conditioning system to auto adjust temperature *Keeping internal 0℃-40℃ working environment *Screen brightness automatically adjust according to the ambient light *With 1920×1080(2K)resolution *Protection range grade IP55 Front and IP40 Back"

Products Details

Wall mounted display can through the terminal software control, network information transmission and multimedia terminal display constitute a complete advertising broadcast control system, and through pictures, text, video,plug-ins (weather, exchange rate,etc.) and other multimedia materials for advertising.The wall mounted display is widely used in:Large shopping malls, hospitals, schools, apartments, chain stores, supermarkets,star hotels, restaurants, office buildings, cinemas, gyms, clubs, subway, airport,exhibition hall, etc.One screen can be used for multiple purposes. It can freely choose different areas to display content, video, picture and text, and can place different types of advertisements at the same time.
LCD Panel
Display active screen size (mm) 476.6x268.1
IP grade IP55 Front/ IP40 Back
Size(inch) 21.5
Backlight LED
Resolution 1920x1080
Brightness 350
Aspect ratio 16:9
Contrast 1200:1
Viewing angle 178°/178°
Colours displayed 16.7M
Typical reaction time  Tr/ Tf (ms) 1.5/3.5
Backlight / Backlight Lifetime (hours) 50,000
Touch Panel(Optional)
Touch Technology Projected Capacitive 10-point Multitouch
Touch Panel Drivers Windows; Linux; Mac; Android
Touch Life (Contacts) Unlimited
Surface Hardness 7H
Operation/Mechanical
Operating Temperature (°C) 0℃—50℃
Humidity Range (RH) 10% - 90%
Net weight (kg) 8.3
Gross weight (kg) 9.3
Housing material Brushed aluminum
Housing (mm) L × W × H 525.2x316.7x56
Mounting VESA 100
Power
Power Supply DC 12V 4A
Power Consumption (W) ≤25
Stand-By Consumption (W) <1
Working Power (V) 12
External Connectors
1xUSD (for touch)
1xHDMI
1xVGA
 PID E-poster design with slim thickness design, widely used in exhibition, museum, shopping mall, entertainment industry etc. FHD 1920×1080 Android operation system 350 nits brightnessSlim Design IPS panel for better view angel Resolution: 1920×1080 Optional with capacitive touch
